Inclusion of the strong points of electric and hydraulic cylinders
Elimination of pipes and fittings and external hydraulic power units
Substantial energy saving and high specific power
The combination of technology and innovation
It can be interfaced with current 4.0 protocols

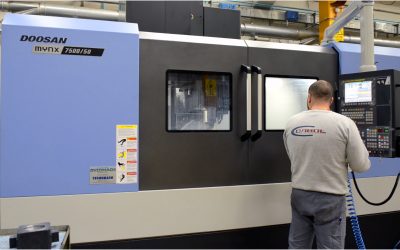

The new Doosan Mynx 7500 machining centre
To improve the production of hydraulic cylinders Continuous research...
General structure
EVOC3 is a new electro-hydraulic actuator consisting of a hydraulic cylinder, a pump, an electric motor, a tank and any optionals.
The combination of these components creates a single object that can be easily integrated into machines.
It is managed like a normal electrical axis with the advantage of having a much higher specific power. With this system the hydraulic power units and the relative pipes are eliminated, thus reducing assembly times and potential leaks.
The advantages and reliability of the hydraulic cylinders are maintained in a single solution which, combined with the simplicity of the electric actuators, guarantee a longer life.
In this way we obtain a simple, reliable, innovative and easy to install product.
Controllable by tablet
or smartphone
Basic version
- AC 1 x 200÷230Vac / 3 x 200÷230Vac, 0.4 ÷ 5 kW motors
- DC 150-4000 W 12-24 DC motors
High perfomance versions with inverter
- 0-10 Vdc 4-20 mA analogue input
- Optional Field Bus: Profibus DP, CANopen, TCP/IP bus mode, Ethernet IP, EtherCAT, ProfiNET
Performance
- Thrust forces up to 125 kN and pulling forces up to 100 kN (Bores from 25 to 100 mm)
- Speed up to 300 mm/sec (For 25 mm bore)
- Strokes up to 6000 mm
- Full customization
Options
- Adjustable limit switch Reed sensors
- Linear position transducer, analogue 0-10 volt, 4-20 ma, digital SSI-Profibus-CANBusDeviceNet-EtherCAT-Ethernet/IP-Powerlink-Profinet-IO-Link
- Pressure transducers
- Load control balancing valves
- Heat exchanger
- Integrated board on the cylinder for position control in closed loop, 0-10 Volt 4-20 ma, analogue inputs, CANBus digital
- Available without motor for assembly of electric motor + inverter by the customer
- Cylinder connections ISO 6020-2 DIN24554, rod connections ISO8133-6982 DIN24555-24338
- Special connections upon request
Various models
We offer versatile and completely customizable solutions, we find different models
and examples adaptable to your needs.
